The Cleanest cut with no hot works permit required...

Stainelec Hydraulic Equipment introduces the Kamekura DW-400 manual, DW-404 electric & DW-408B cordless threaded rod cutters. These units give the operator the easy task of cutting threaded rod with ease, whilst not damaging the thread after completing the cut.

The DW threaded rod cutting range is designed to save time and effort as it boasts a portable, compact, user friendly and powerful design.

These tools are capable of cutting M8, M10 & M12 mild steel & stainless steel hooker rod (all thread). The DW Series of threaded rod cutters are designed & precision manufactured in Japan to the highest of international standards.

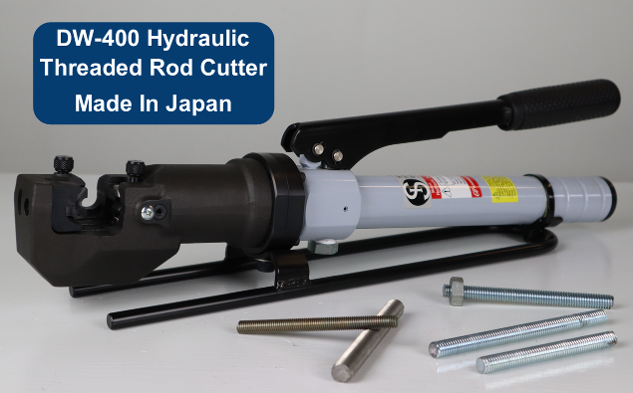

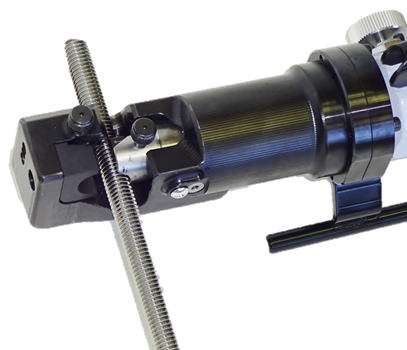

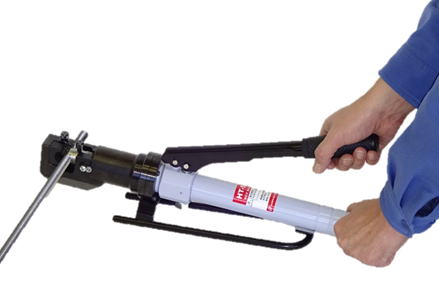

DW-400 Manual Threaded Rod Cutter

Stainelec Hydraulic Equipment introduces the DW-400 manual hydraulic threaded rod cutter.

This unit gives the operator the easy task of cutting threaded rod without damaging the thread after completing the cut.

This manually operated threaded rod cutter gives the user more flexibility as its designed to be used in factory and on-site environments.

The threaded rod cutter cuts cleanly on both sides of rod enabling nuts to be screwed on either side and produces no sparks when cutting the material.

The DW-400 threaded rod cutter is extremely reliable, powerful and easy to use and has the ability to cut M8, M10, M12, W3/8, W1/2, 3/8 UNC & 1/2 UNC mild steel and stainless steel hooker rod (all thread).

This unit features a locking pins system that enables the user to switch and change cutting dies in a matter of seconds.

Kamekura DW-400 Manual Threaded Rod Cutter.pdf Kamekura DW-400 Manual Threaded Rod Cutter.pdf
Size : 474.923 Kb
Type : pdf

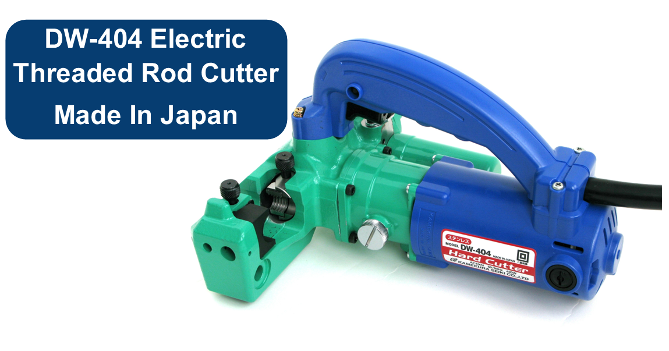

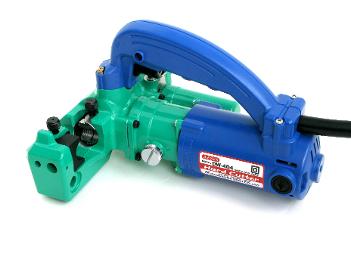

DW-404 Electric Threaded Rod Cutter

Features;

  • Max. Cutting Capacity: M8, M10, M12 Mild Steel & M8, M10, M12 Stainless Steel
  • Max. Hydraulic Pressure: 700 Bar
  • Cutting Speed: 3 Secs
  • Motor: 230 Volt Double Insulated Electric Motor
  • Weight: 4.8Kgs

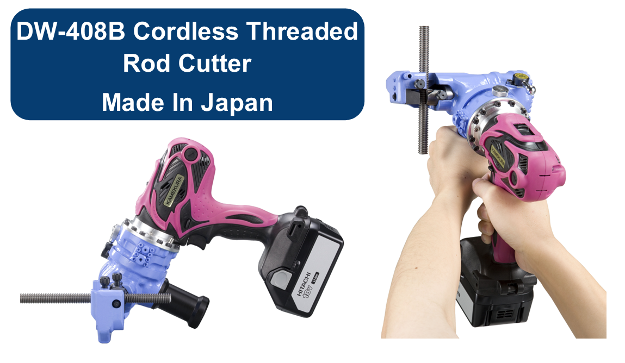

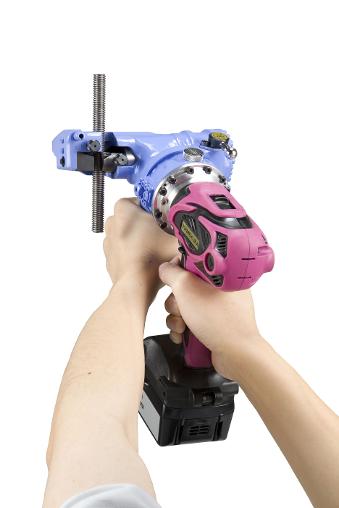

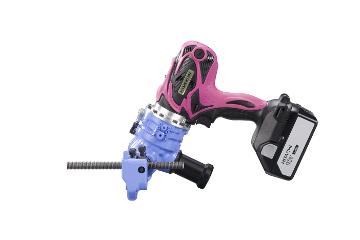

DW-408B Cordless Threaded Rod Cutter

Features;

  • Max. Cutting Capacity: M8, M10, M12 Mild Steel & M8, M10, M12 Stainless Steel
  • Max. Hydraulic Pressure:700 bar
  • Cutting Speed: 3.8 Secs
  • Motor: 18 Volt Hitachi Li-Ion Battery & Motor
  • Weight: 5Kgs
