Australias Leading supplier for swaging & crimping equipment...

Stainelec Hydraulic Equipment presents the ARM Sangyo manual & powered swaging tools are designed to swage steel wire rope material with ease for factory or on-site operations as well as rigging & lifting applications. These tools are designed & precision manufactured in Japan to the highest of international standards. Stainelec are the Sole Australian agents for all ARM Sangyo products.

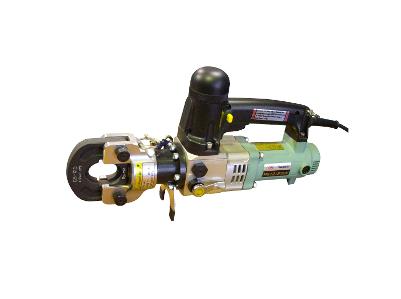

HS-12 Electric Hydraulic Swager

Features;

  • Swaging Capacity: 6mm, 8mm, 9mm, 10mm, 12mm Dia. (1/4"  5/14"  3/8"   13/32"   1/2")
  • Motor: 230 Volt 50/60Hz Double Insulated Motor
  • Weight: 7.5kgs
  • Dimensions (L) x (W) x (H): 433 x 104 x 243mm
  • Made In Japan
ARM HS12 Electric Swager Info.pdf ARM HS12 Electric Swager Info.pdf
Size : 547.948 Kb
Type : pdf

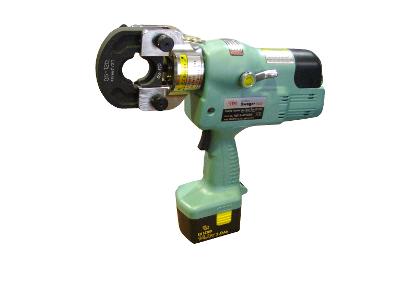

HS-12 Cordless Hydraulic Swager

Features;

  • Swaging Capacity: 6mm, 8mm, 9mm, 10mm, 12mm Dia. (1/4"  5/14"  3/8"   13/32"   1/2")
  • Motor: 18 Volt Battery & Motor
  • Weight: 6.5kgs
  • Dimensions (L) x (W) x (H): 355 x 90 x 350mm
  • Made In Japan
ARM HS12 Cordless Swager Info.pdf ARM HS12 Cordless Swager Info.pdf
Size : 322.719 Kb
Type : pdf

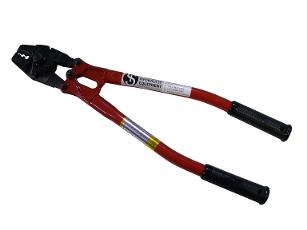

ARM HSC-350 Wire Rope Swager

  • Length: 430mm
  • Wire Rope Capacity (mm/Inch): 1.5, 2.0, 2.5, 2.8, 3.0, 3.5, (1/16" 5/64" 3/32" 7/64" 1/8" - )
  • Weight: 1.1kgs
  • Made In Japan


ARM HSC Swaging Brochure.pdf ARM HSC Swaging Brochure.pdf
Size : 2169.133 Kb
Type : pdf

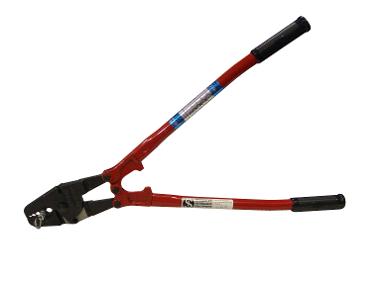

HSC-600 Wire Rope Swager

  • Length: 650mm
  • Wire Rope Swager (mm/Inch): 1.5, 2.0, 2.5, 2.8, 3.0, 3.5, 4.0, 5.0, (1/16" 5/64" 3/32" 7/64" 1/8  -  5/32" 3/16")
  • Weight: 2.5kgs
  • Made In Japan
ARM HSC Swaging Brochure.pdf ARM HSC Swaging Brochure.pdf
Size : 2169.133 Kb
Type : pdf

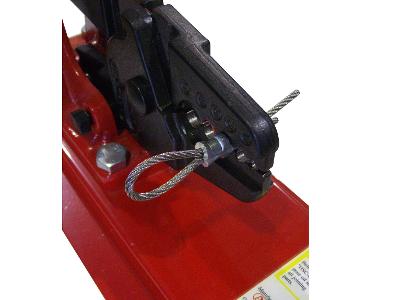

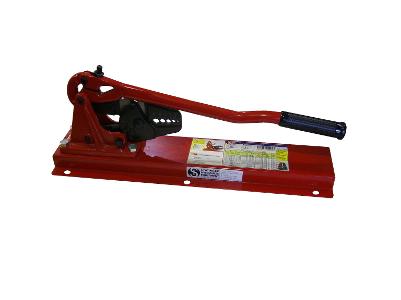

HSC-600BB Bench Mounted Wire Rope Swager

  • Length: 540mm
  • Wire Rope Capacity (mm/Inch): 1.5, 2.0, 2.5, 2.8, 3.0, 3.5, 4.0, 5.0, (1/16" 5/64" 3/32" 7/64" 1/8  -  5/32" 3/16")
  • Weight: 5.2kgs
  • Made In Japan
ARM HSC Swaging Brochure.pdf ARM HSC Swaging Brochure.pdf
Size : 2169.133 Kb
Type : pdf

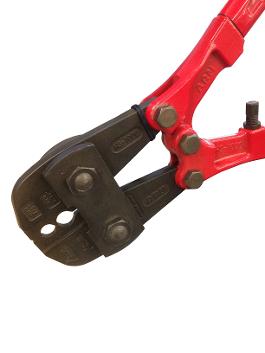

HS-1000 Manual Wire Rope Swager

  • Length: 1010mm
  • Wire Rope Swager (mm/Inch): 6.0, 8.0, (1/4" 5/16")
  • Weight: 7kgs
  • Made In Japan

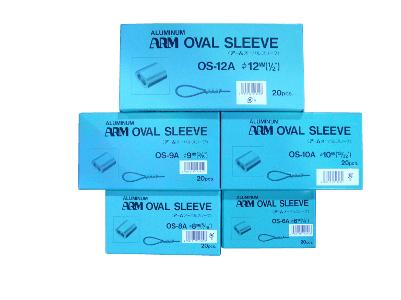

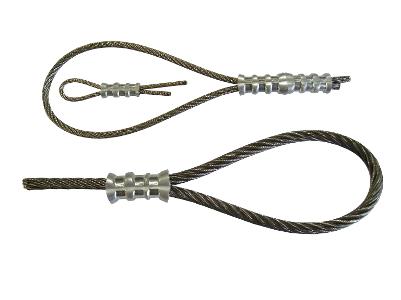

ARM Oval Sleeves

ARM Sangyo oval swaging sleeves are precision designed for use in enclosing the ends of steel wire rope and cable for various rigging and support applications.

These swaging sleeves are capable of being placed anywhere on the steel wire rope but is predominantly used at the ends to save the wire rope from wearing out or fraying over time.

ARM Sangyo's oval sleeves are manufactured in Japan from high tensile aluminum which meets the highest of industry standards for the global construction and manufacturing industries.

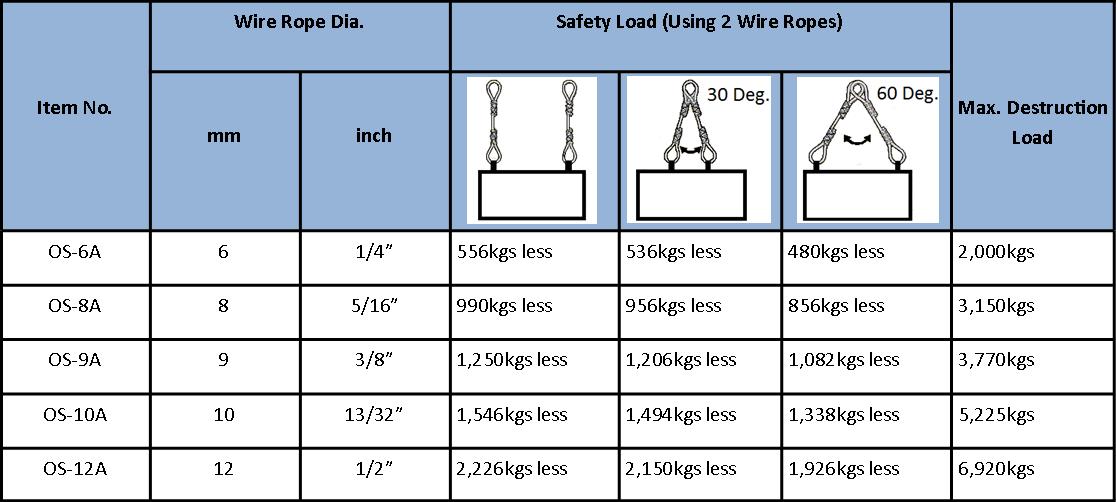

Available sizes are as follows;

Item No.             Wire Rope Dia.

OS-6A                  6mm / 1/4" Inch

OS-8A                  8mm / 5/16" Inch

OS-9A                  9mm / 3/8" Inch

OS-10A                10mm / 13/32" Inch

OS-12A                12mm / 1/2" Inch
