Precision Made Strut Cutting tools for any working environment...

Stainelec now supply the Kamekura M-400 manual, M-40L electric & M-40LB cordless hydraulic strut cutters for the construction and electrical industry. These tools are designed to cut UniStrut, EzyStrut, Burndy Strut & Flexi-Strut material with ease as well as custom Strut profiles per customers request.

The M-400, M-40L & M-40LB cutter are both WH&S compliant, protecting the user from common dangers found in alternative cutting methods such as abrasive and saw cutting applications.

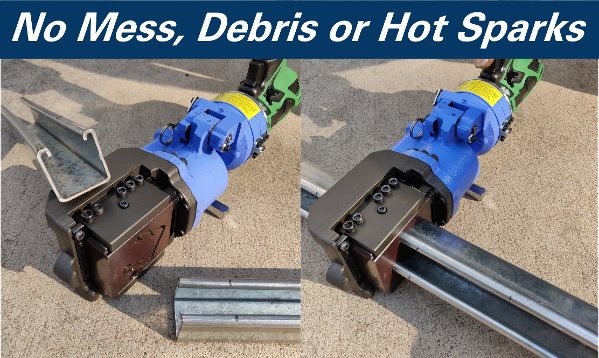

When these cutters are in use they don't produce particle debris, deburring and mess after completing the cut. These tools are designed & precision manufactured in Japan to the highest of international standards.

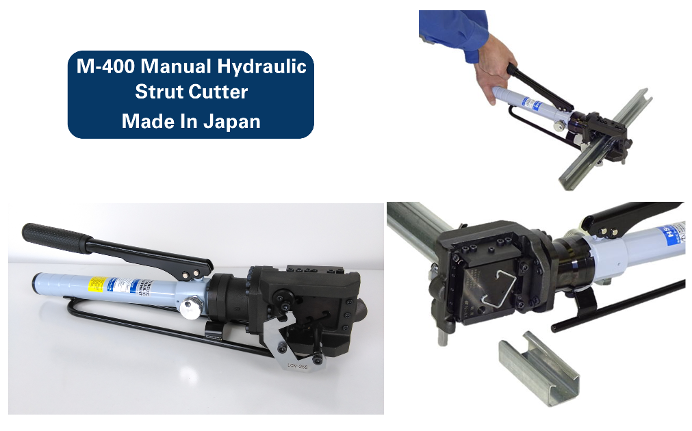

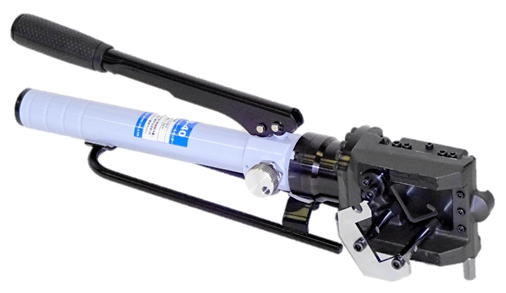

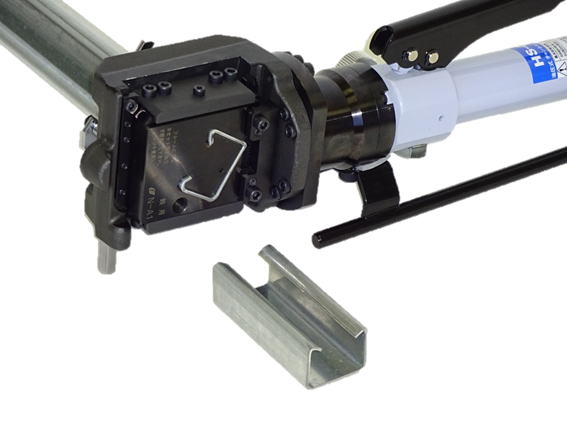

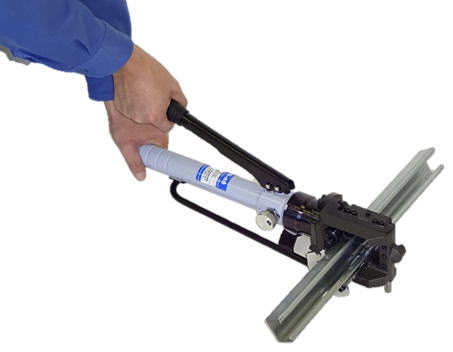

M-400 Manual Hydraulic Strut Cutter

Specifications;

  • Max. Cutting Capacity: 1.6mm Stainless Steel Strut & 2.5mm Mild Steel Strut
  • Max. Cutting Force: 9 Ton Output
  • Dimensions: 125 x 497 x 152mm
  • Weight: 6.5Kgs

The M-400 manual metal strut cutters are OH&S compliant, protecting the user from common dangers found in alternative cutting methods such as abrasive and saw cutting applications.

M-400 manual hydraulic strut cutters are suitable for use in electrical, air conditioning and plumbing industries as well as in plant and engineering, and various on-site applications. With no waste, mess or deburring.

The M-400 offers high efficiency and safety in on-site requirements for cutting strut material. Dual cutting cassettes are available per customers request for multiple size material.

Special M-400 Manual Strut Cutter Features;

  • Cutting blades housed within the cassette for each type of strut material section
  • Cassette can be easily changed within a few seconds to suit the size of the section required to be cut
  • Enclosed cutter blades prevent injury to the operator during operation
  • Dual profile cutting cassettes are available per customers request
  • Boasts a lightweight & portable design for on-site & factory based applications and environments
M-400 Manual Strut Cutter.pdf M-400 Manual Strut Cutter.pdf
Size : 868.985 Kb
Type : pdf

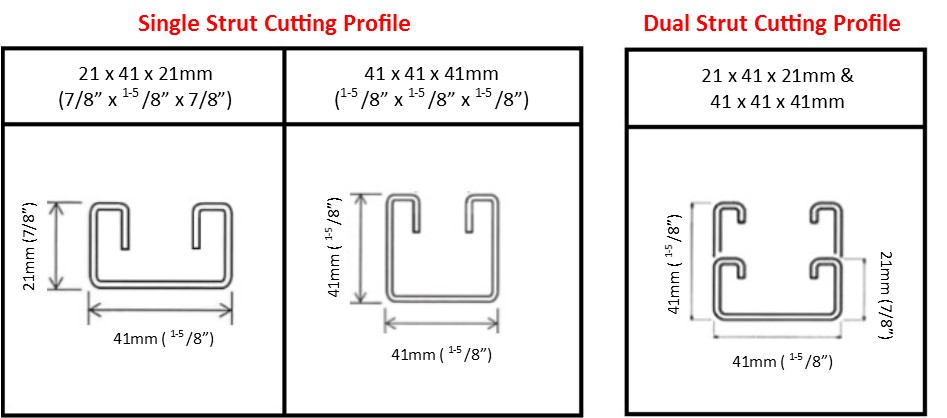

Single Strut & Dual Strut Cutting Cassettes are Available

for all Strut Cutter Models (M-400, M-40L & M-40LB)

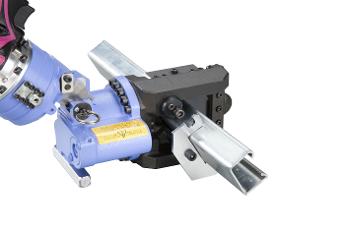

M-40L Electric Hydraulic Strut Cutter

Specifications;

  • Max. Cutting Capacity: 2mm Stainless Steel Strut & 2.5mm Mild Steel Strut
  • Max. Cutting Force: 10 Ton Output
  • Motor: 230 Volt Double Insulated Electric Motor
  • Weight: 5Kgs
Kamekura M-40L Strut Cutter.pdf Kamekura M-40L Strut Cutter.pdf
Size : 1175.373 Kb
Type : pdf

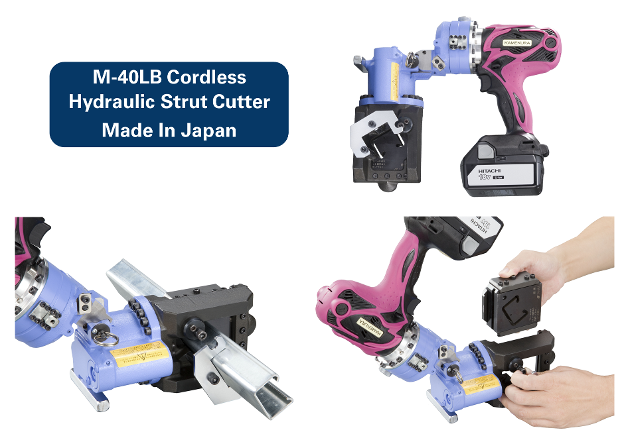

M-40LB Cordless Hydraulic Strut Cutter

Specifications;

  • Max. Cutting Capacity: 2mm Stainless Steel Strut & 2.5mm Mild Steel Strut
  • Max. Cutting Force: 9.5 Tons
  • Motor: 18 Volt Hitachi Li-Ion Battery & Motor
  • Weight: 5Kgs
Kamekura M-40LB Portable Strut Cutter.pdf Kamekura M-40LB Portable Strut Cutter.pdf
Size : 958.492 Kb
Type : pdf

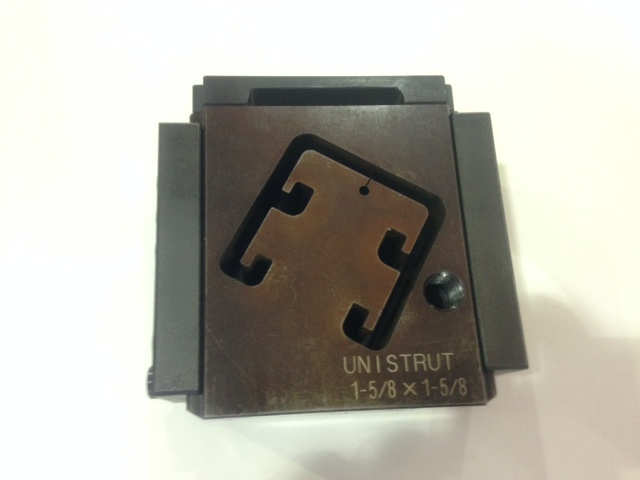

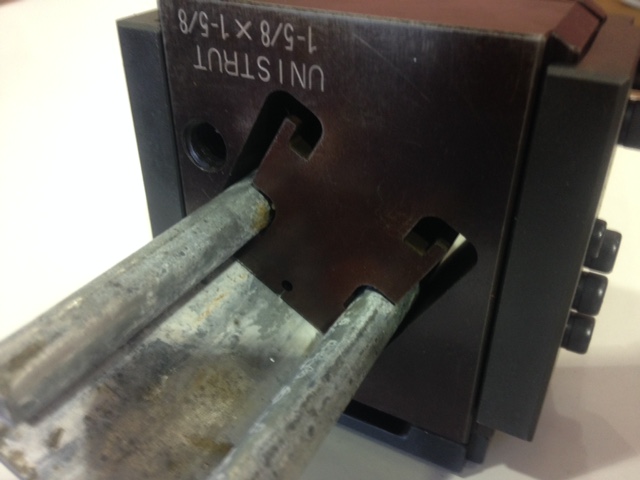

Dual Cutting Cassette Profiles for UniStrut are Available Per Customers Request

(Cutting Profile 41 x 41 x 41 & 20 x 41 x 20 Pictured Above)
