High quality tungsten carbide tipped hole saws, designed & made in Japan...
Stainelec Hydraulic Equipment presents the SEK tungsten carbide hole cutters manufactured in Japan.
The high quality SEK tungsten carbide hole cutters feature a patented design to the cutting angle between teeth configuration, resulting in less effort being required when using electric/ battery drilling tools. The outer and inner cutting tip edges are designed to enhance the discharge of chips, resulting in a smooth and efficient operation.
- Carbide cutters come complete with an arbor and HSS drill
- Maximum depth on hole is 25mm for stainless steel and mild steel
- Selected sizes are available for 38mm deep hole cutting
- Also includes selected imperial sizes for use when holes are required for nominal size round tube
- Cutting through tube can be cut quick and easy in most applications
- Cutter can be sharpened repeatedly due to carbide teeth quality
Stainelec is the sole Australian agent for SEK Co. Ltd, supplier of precision cutting tools to the metal working industry.
For more information please refer to the complete SEK range PDF below;
SEK Complete Hole Saw Range Info Sheet 2020.pdf
Size : 722.919 Kb
Type : pdf

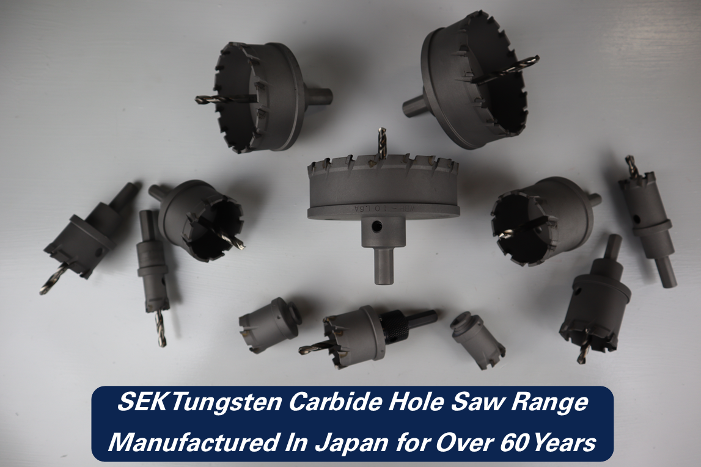

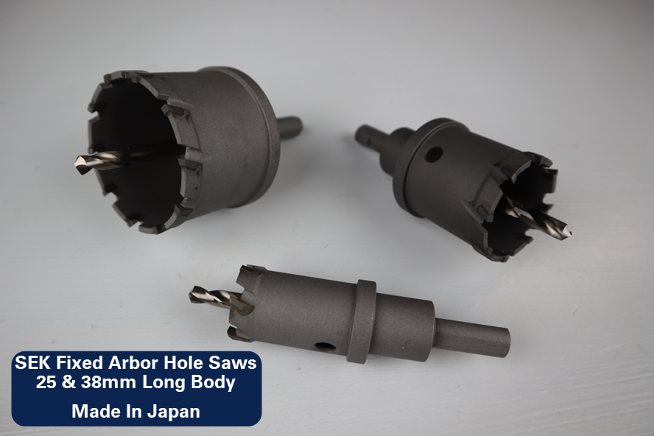

SEK Fixed Arbor Tungsten Carbide Hole Saws (25mm Long Body)
Individual sizes available from 15mm up to 120mm diameter.
SEK Fixed Arbor Hole Cutter Kit No.1
7 Round Hole Cutter (25mm Long Body); 16, 20, 25 , 32, 38, 40 & 50mm, 1 Plastic Carry Case
SEK Fixed Arbor Hole Cutter Kit No.2
7 Round Hole Cutter (25mm Long Body); 16, 19, 25.4, 31.8, 35, 38 & 50.8mm, 1 Plastic Carry Case
SEK Fixed Arbor 38mm Long Body Cutters Are Also Available Per Customers Request

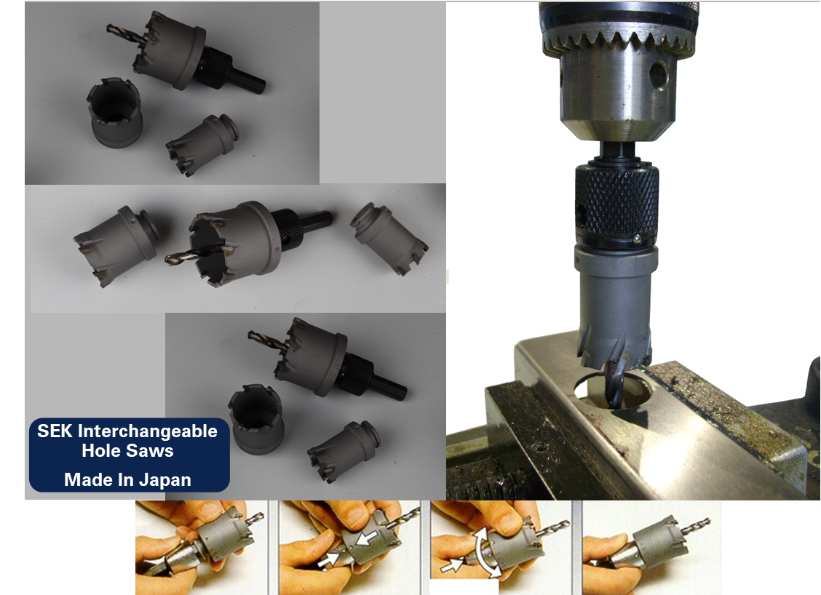

SEK Interchangeable Tungsten Carbide Hole Saws
Unique Quick Change tungsten carbide blade design to increase productivity in production workshop applications (use 1 arbor with various size SEK T.C.T. hole cutter blades).
SEK SC Quick Change Hole Cutter Kit
6 Cutter Blades; 20, 25 , 32, 38, 40 & 50mm, 1 Quick Change Arbor with Pilot Drill, 1 Plastic Carry Case
Interchangeable quick change spare blade sizes available from 19mm up to 60mm diameter.

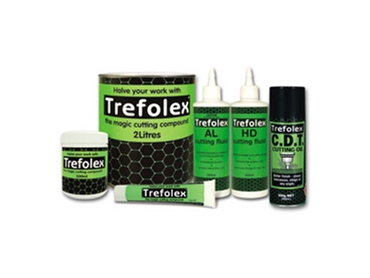

Stainelec ApprovedCutting Compounds - Trefolex Cutting Fluids
Manufactured by CRC, Trefolex is a green coloured active cutting compound containing a dispersal colloid.
It melts slowly as frictional heat is generated. It maintains efficient lubrication when applied to the SEK hole saw blades. It is suitable for use on aluminum, mild steel and stainless steel material.
Trefolex prolongs the life of the cutting teeth whilst not affecting the material its cutting when applied. It will not corrode steel or affect aluminium surfaces .
We recommend the use of high quality cutting compounds when using the SEK hole saws as it will increase the longevity of the blades cutting teeth when working on thicker steel materials.
