Precision tools for auto extrication & urban disaster operations...

Stainelec Rescue Equipment introduces a premium specialised range of rescue cutters and spreaders from Ogura & Edilgrappa. These cordless & electric powered rescue tools are ideal for urban emergency rescue, remote rescue, forcible entry, auto extrication, collapsed rescue, protestor release and confined space rescue.

These units are designed for easy operation. All cordless models do not require an auxiliary power source as they are powered by the self-contained motor and battery on each tool body.

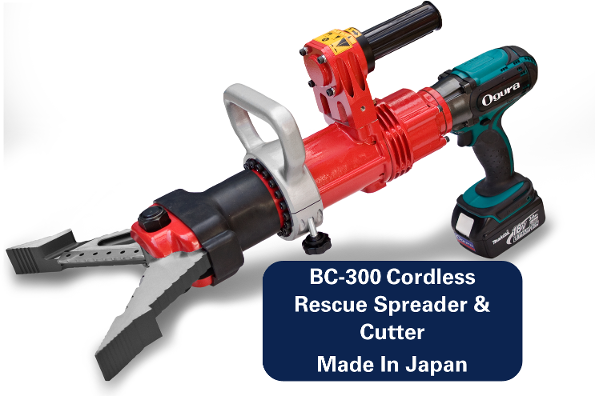

BC-300 Cordless Rescue Spreader & Cutter

Features;

  • Battery; Makita Li-Ion 18 Volt
  • Weight (Including Battery): 13.8Kg
  • Maximum Spreading Distance: 300mm
  • Maximum Spreading Force (188mm from the tips): 135.3kN (13.8 Tonnes)
  • Maximum Spreading Force (at the tips):51.0kN (5.2 Tonnes)
  • Maximum Cutting (opening): 205mm
  • Maximum Cutting Force (in the notch): 313.8kN (32.0 Tonnes)
  • Maximum Cutting Force (at the centre): 115.7kN (11.8 Tonnes)
  • Maximum Squeezing Force (at the tips):52.0kN (5.3 Tonnes)
BC-300 Rescue Spreader Info Sheet 2020.pdf BC-300 Rescue Spreader Info Sheet 2020.pdf
Size : 930.931 Kb
Type : pdf

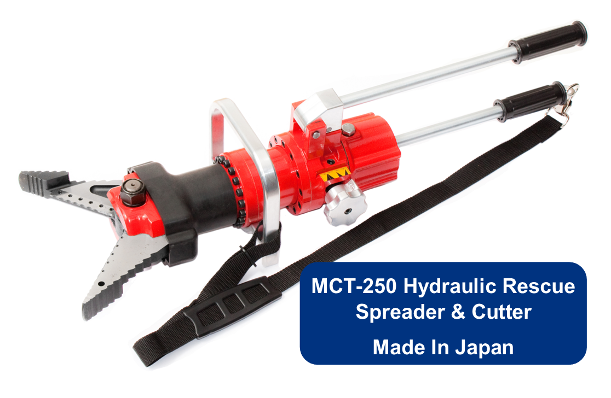

MCT-250 Manual Hydraulic Rescue Spreader & Cutter

The MCT-250 is perfect for remote rapid response scenarios thanks to its high output manual hydraulic system and lightweight portable design. This tool is designed & precision manufactured in Japan.

Features;

  • Lightweight & portable design
  • Easily replaceable spreading jaws
  • Can be deployed in places where intense water or flammable chemicals/gases may be present.
  • Maximum spreading distance; 254mm
  • Maximum spreading force; 12.6 Ton
  • Maximum cutting force; 15 Ton

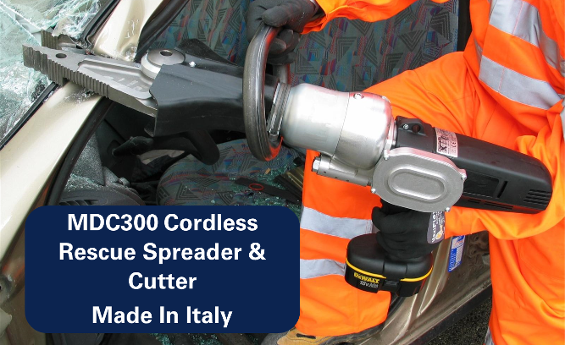

MDC300 Cordless Rescue Cutter & Spreader

Features;

  • Maximum Blade Opening: 300mm
  • Battery Operating Life: 1.2 Hours
  • Maximum Operating Force: Cutting Force - 19.3 Tonnes, Spreading Force - 10.1 Tonnes & Squeezing Force - 3.7 Tonnes
  • Weight: 10.3Kgs
  • Dimensions L x W x H: 690 x 240 x 360mm
  • Standard Accessories: Heavy Duty Carry Case
  • Hydraulic Pressure Output: 7 Ton / 550 Bar Pressure
MDC300 Rescue Spreader Info Sheet 2020.pdf MDC300 Rescue Spreader Info Sheet 2020.pdf
Size : 409.038 Kb
Type : pdf

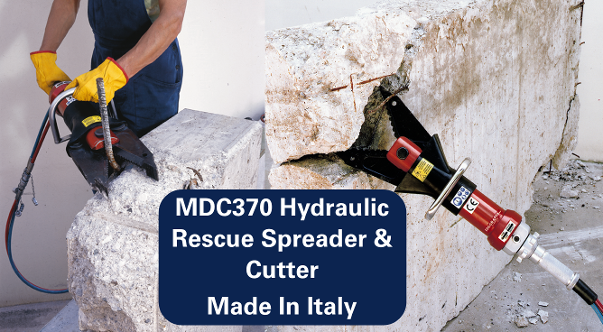

MDC370 Hydraulic Rescue Cutter & Spreader

Features;

  • Maximum Blade Opening: 370mm Maximum Opening
  • Maximum Operating Force: 20 Tonnes
  • Weight: 16.5Kgs
  • Dimensions L x W x H: 600 x 500 x 180mm
  • Standard Accessories: Heavy Duty Carry Case
  • Hydraulic Pressure Output: 700 Bar Pressure
MDC370 Rescue Spreader Info Sheet 2020.pdf MDC370 Rescue Spreader Info Sheet 2020.pdf
Size : 493.418 Kb
Type : pdf

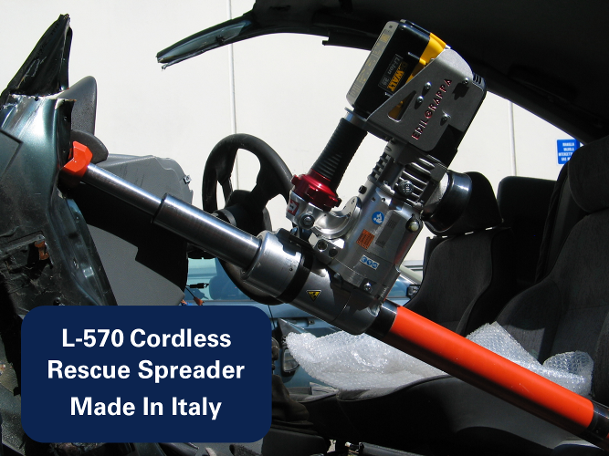

L-570 Cordless Rescue Spreader

Features;

  • Max. Lifting Force: 22 Ton
  • Max. Output Pressure: 700 Bar
  • Max. Cylinder Extension: 570mm High
  • Motor: 36 Volt Li-Ion DeWalt Battery
  • Weight: 17Kgs (Including Battery)
  • Dimensions (L) x (W) x (H): 490 x 120 x 290mm
L-570 Rescue Cylinder Info Sheet 2020.pdf L-570 Rescue Cylinder Info Sheet 2020.pdf
Size : 956.767 Kb
Type : pdf
